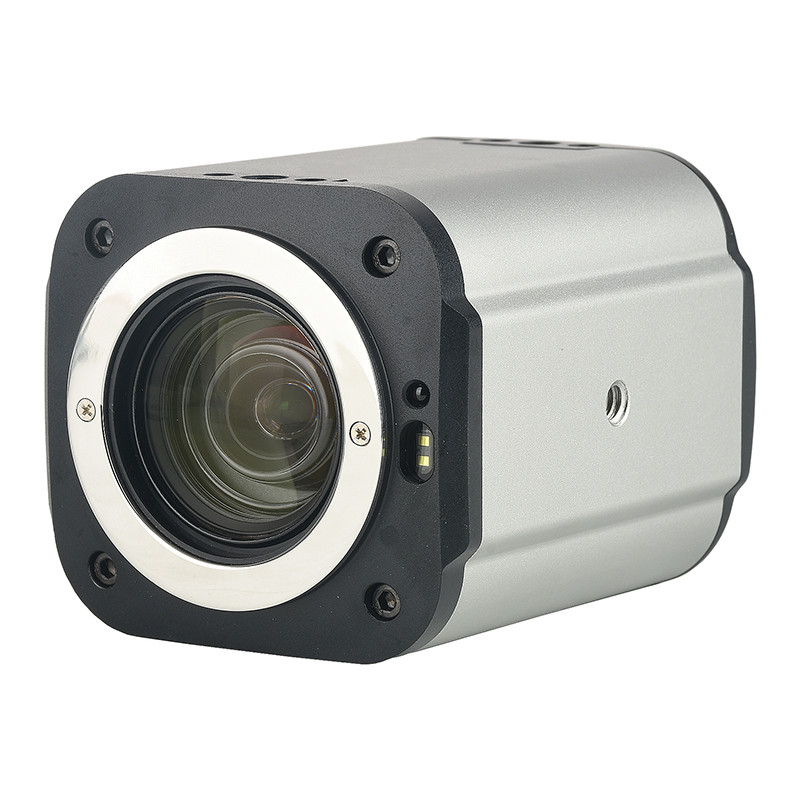

| Product model | SWG-AF5600 |
| Pixel | HDMI connected screen 2 million pixels, connected computer 2 million pixels |
| Output mode | HDMI/USB |
| Sensor | 2M/SONY IMX335LQN-C |
| Sensor size | 1/2.8" |
| HDMI output resolution | 1920*1080 60 frames |
| USB output resolution | 1920*1080 30 frames |
| Pixel size | 2.0 mu mx2.0 microns |
| Lens | 10X optical magnification lens, 67.5 degrees without distortion F1.76~F3.0 |
| Focusing mode | Autofocus, keying, manual |
| Zoom range | Live mode 7X amplification, regular mode 10X amplification |
| Zoom speed | Wide~Tel :3.0S Tel~Wide :2.6S |
| Focusing range | 30cm(wide Angle), 1.5m(near Angle) |
| Field Angle | Level: 67.5 degrees (wide Angle), 7.6 degrees (near Angle) |
| Preset bit function | Panorama and close-up switch: Set the position of panorama or close-up through the preset position, without the cooperation of a special person, one anchor can easily complete the operation of the broadcast room. |
| Automatic aperture | Automatic/manual |
| Exposure | Auto/Shutter priority/Aperture priority/Brightness/Manual |
| Electronic shutter | NTSC: 1/30~1/10000, PAL: 1/25~1/10000 |
| White balance | Automatic (1,800K ~ 10,000K)/single press/indoor/outdoor/manual |
| Menu | Chinese and English menu |
| Other functions | 2D&3D noise reduction, Gamma, mirror, flip, electron amplification, anti-flicker, wide dynamic |
| Voltage | AC100V-240V DC 12V 5W |
