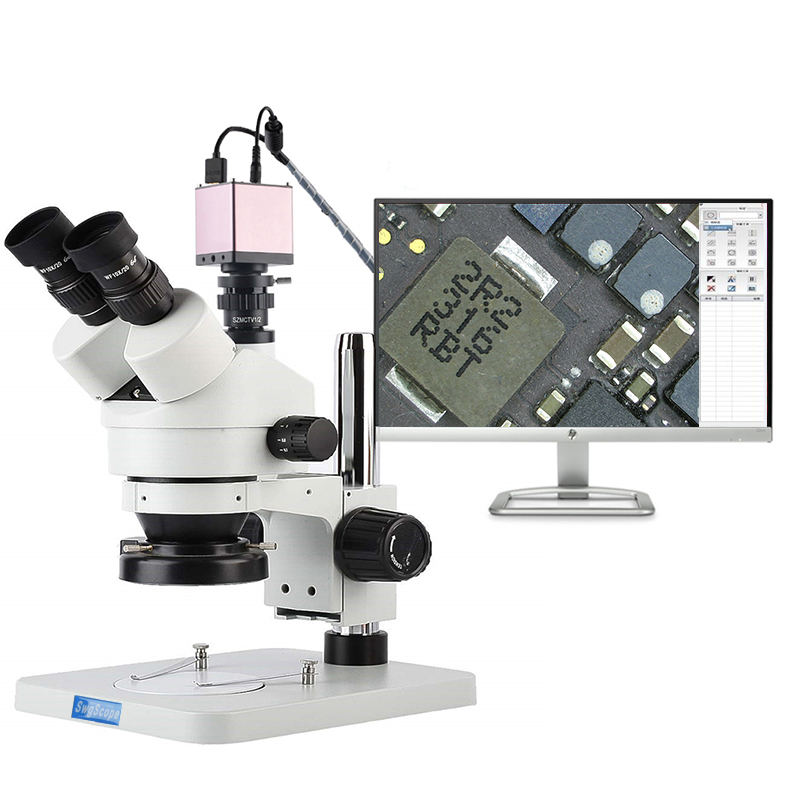

| Product model | SWG-HD1000C |
| eyepiece | High eye point large field eyepiece wf10x / 20 |
| Objective lense | 0.7x-4.5x continuously adjustable |
| CTV interface | 0.5X |
| Optical amplification | 7X-45X |
| Electronic amplification | 24X-153X |
| Zoom lens | Binocular tilt 45 degree 360 degree rotation |
| Pupil range | 52mm-75mm ± 5 visibility |
| Working distance | 100-165mm |
| Lifting range | 275mm |
| Focusing stroke | 50mm |
| Base pillar | 200x255x22mm, column diameter 32mm |
| Lens aperture | Phi 76mm |
| Chip structure | FPGA+ARM |
| operating system | LINUX 3.10 |
| Kernel structure | Dual core cortex-a9 |
| Main frequency speed | 1Ghz |
| Optical size | 1/2 inches |
| Resolving power | 1920 x 1080 |
| Frame rate | 60fps |
| Measuring function | Between two points, point to line, three point circle, center distance, concentric circle, point to circle, line to circle, parallel line, rectangle, angle, radian, polygon |
| Data preservation | Save with measurement result image or Excel data |
| Measurement method | Mouse operation, intelligent point selection / manual point selection |
| Interface | 2 USB interfaces; USB disk, wireless mouse or keyboard can be connected; photo taking and video recording are supported |
| working voltage | 12V |
| working temperature | -10 degree -70 degree |
| Hair light source | LED (144 pieces) continuously adjustable |
| input voltage | 12V-0.5A |
| output power | 4.5W |
| Working distance | 40-160mm |
| Maximum illumination | 60000 Lux |
| Bulb brightness | MAX3500 MCD |
| Display | 21.5 inches |
1. 1X Microscope host lens
2. 1X microscope stand
3. 1X HDMI HD measurement camera
4. 1X 21.5 "display
5. 1X 144led light source
6. 1X mouse
7. 1X U disk 8g
8. 1x HDMI HD cable
