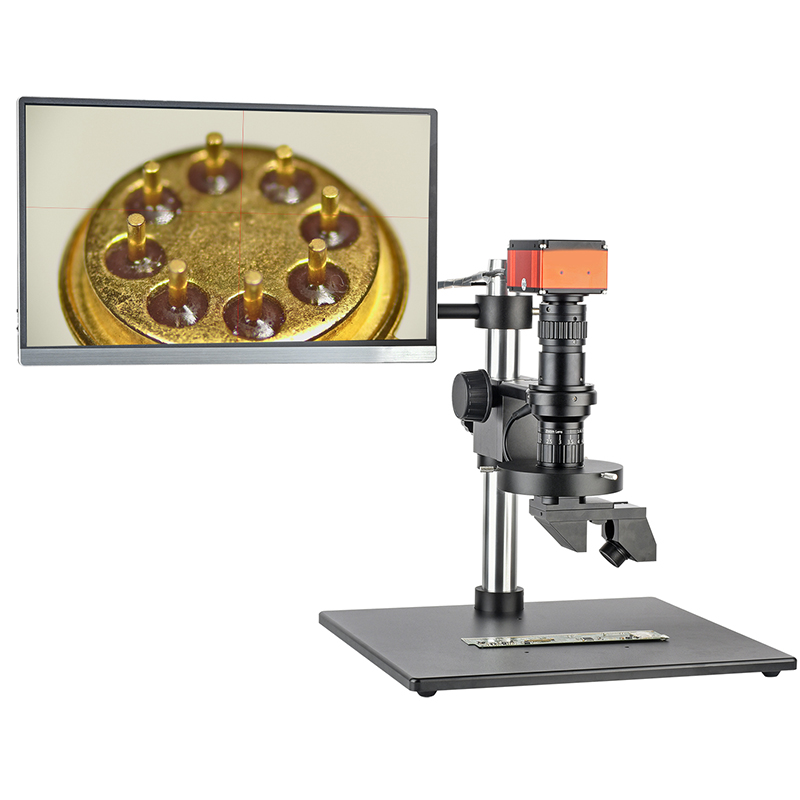

| Product model | SWG-HD156-3D |
| Changing times ratio | 13X-110X |
| The camera interface | C interface |
| 3D imaging Angle | 45 ° |
| 3D rotation | 2D/3D free manual switching |
| Working distance | 86mm |
| Visual field (mm) | 3.5 mm - 29 mm |
| High post | 300mm |
| The base size | 330mmx300mm |
| The LED light source | 208 LED beads, four-zone control, independently adjustable brightness, illumination of 15000 Lux, wavelength 455-457.5nm, output voltage 12V 8W |
| Output interface | HDMI, Gigabit network |
| The sensor | 1/1.8 of an inch |
| Image resolution | 3840 x 2160 |
| pixel | 8 million pixels |
| Pixel size | 1.85 mu m x 1.85 microns |
| Frame rate | 60fps |
| Data bits | 12bit |
| Exposure method | Line by line exposure |
| color | Color R/G /B adjustable |
| The image is frozen | support |
| OSD | support |
| Storage capabilities | Support photography and video recording |
| The camera interface | C |
| Measurement functions | Two points, point line, three point circle, center distance, concentric circle, pointing circle, coil, parallel line, rectangle, Angle, radian, polygon |
| Save the data | Measurement results for image or Excel data storage |
| Method of measurement | Mouse operation, intelligent selection/manual selection |
| Display | 15.6 inches |
1. 1X microscope host 2D/3D lens
2. 1X microscope bracket
3. 1X 4K HD measurement camera
4. 1X 15.6 inch display screen
5. 1X LED light source
6. 1X power adapter
7.1X HDMI cable
