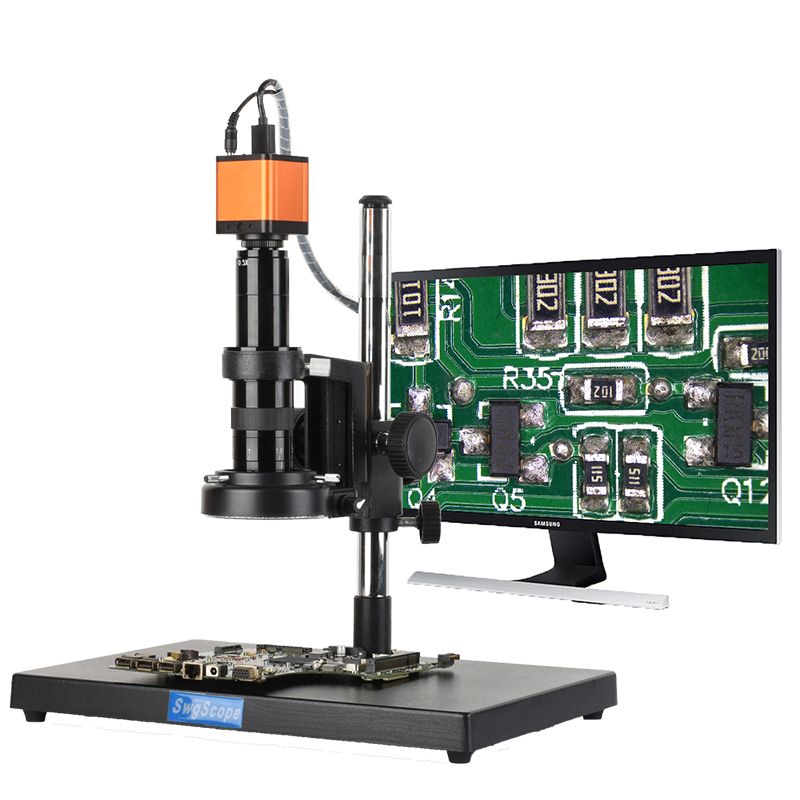

| Product model | SWG-HD2100 |
| Zoom ratio | Continuously adjustable 1:6.5 |
| Comprehensive magnification | 27X-176X |
| Working distance | 90mm-110mm |
| focusing range | 60mm |
| Lifting range | 275mm |
| Base pillar | Base 370x250x16mm, column height 310mm, diameter 25mm, lens aperture 50mm |
| Output interface | HDMI, USB |
| sensor | Sensor 1 / 2.3 in |
| Image resolution | 5488 * 4112 (tfcard), 1920x1080 (tfcard), |
| Video recorder | 1920*1080 @ 60fps |
| pixel | 21 megapixel |
| Pixel size | 1.335µm×1.335µm |
| HDMI ratio | Screen support 4:3,16:9,16:10 |
| Frame rate | 60fps |
| Brightness control | Auto / manual |
| white balance | Manual operation, automatic |
| colour | R/G/B adjustable |
| Image freeze | Support |
| OSD | Support |
| Cross line | Multi color and adjustable size |
| Transverse and longitudinal lines | Multi color, 4 horizontal / vertical lines, movable |
| TF card interface | Up to 64g |
| Interface | C/CS |
| USB interface | USB2.0 |
| Power Supply | DC-12V/1A |
| Hair light source | LED (144 pieces) continuously adjustable |
| input voltage | 12V-0.5A |
| output power | 4.5W |
| Working distance | 40~ 160mm |
| Maximum illumination | 60000 Lux |
| Bulb brightness | MAX3500 MCD |
| Display | 21.5 inches |
1. 1x microscope host lens
2. 1x microscope bracket
3. 1x HDMI storage camera
4. 1x 21.5 inch display
5. 1x 144led light source
6. 1x power adapter
7. 1x HDMI cable
