SWG-HDVS200C HD measurement industrial camera HD 2.0MP

Model: SWG-HDVS200C
Output interface: HDMI 2 megapixel 1920 × 1080 / 60fps
Sensor: CMOS 1 / 2 inch
Dual USB interface, wireless mouse or keyboard can be connected.
Function: OSD menu, supporting measurement, picture saving and picture playback
Description Packing list
Product model SWG-HDVS200C
Chip structure FPGA+ ARM
operating system LINUX3.10
Kernel structure Cortex-a9 of
Main frequency 1GHz
Optical dimensions 1/2 inches
Resolution 1920×1080
Frame rate 60fps
Measurement function Two points, point line, three point circle, center distance, concentric circle, pointing circle, coil, parallel line, rectangle, angle, radian, polygon
Data preservation Measurement results for image or Excel data saving
measuring method Mouse operation, intelligent selection / manual selection
Interface 2 USB interfaces, connecting USB disk, wireless mouse or keyboard
working voltage 12V
working temperature -10-70 degrees
Outline size 61 *61 *72mm

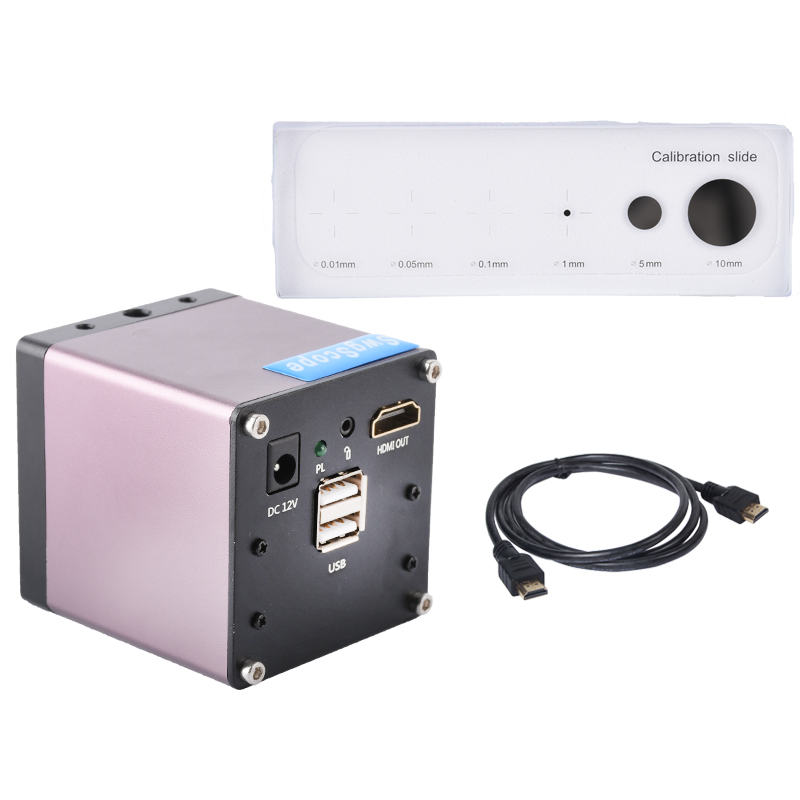

1. 1X measurement HDMI camera

2. 1xhdmi cable

3. 1X wireless mouse

4. 1x12v-2a adapter power supply

5. 1X scale

6. 1xu disk 16g
