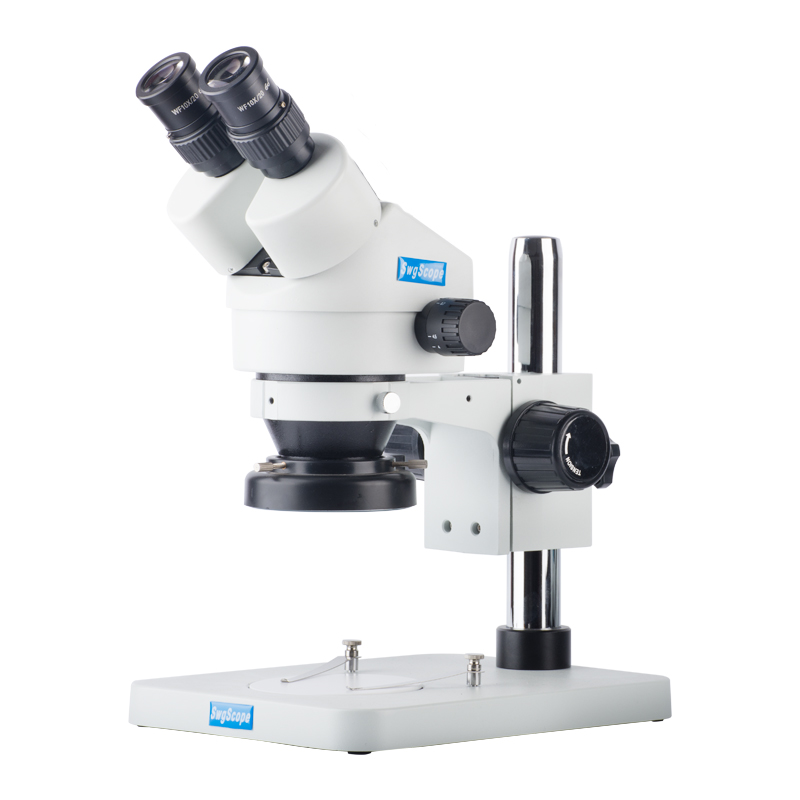

SWG-L45 binocular stereomicroscope

Model: SWG-L45
Binocular stereomicroscope
Magnification: 7x-45x
Eyepiece: 10X
Objective lens: 0.7x-4.5x
Working distance: 100mm
Light source: 144 led adjustable light sources
  • Selectable magnification: 3.5X-90X
  • Description 3.5x-90x configuration parameters Packing list
    Product model SWG-L45
    eyepiece High eye point large field eyepiece wf10x / 20mm
    Objective lense 0.7x-4.5x continuously adjustable
    Nose Binocular body tilt 45 degrees 360 degrees rotation
    Pupil range 52mm-75mm ± 5 visibility
    Working distance 100mm
    Lifting range 275mm
    Focusing stroke 50mm
    Base pillar 200x255x22mm; column diameter 32mm
    Lens aperture Phi 76mm
    Hair light source LED (144 PCs) continuously adjustable
    input voltage 12V-0.5A
    output power 4.5W
    Working distance 40-160mm
    Maximum illumination 60000 Lux
    Bulb brightness MAX3500 MCD
    Product model SWG-L45
    eyepiece High eye point large field eyepiece wf10x / 20mm
    Objective lense 0.7x-4.5x continuously adjustable
    Nose Binocular body tilt 45 degrees 360 degrees rotation
    Pupil range 52mm-75mm ± 5 visibility
    Auxiliary objective 0.5X/2X
    Working distance 100mm
    Lifting range 275mm
    Focusing stroke 50mm
    Base pillar 200x255x22mm; column diameter 32mm
    Lens aperture Phi 76mm
    Hair light source LED (144 PCs) continuously adjustable
    input voltage 12V-0.5A
    output power 4.5W
    Working distance 40-160mm
    Maximum illumination 60000 Lux
    Bulb brightness MAX3500 MCD

    7x-45x packing list:

    1. 1X host lens 0.7x-4.5x

    2. 2X eyepiece 10x

    3. 1X microscope stand

    4. 1x144led light source

    5. 2X eye patch.

    6. 1X dust cover



    3.5x-90x packing list:

    1. 1X host lens 0.7x-4.5x

    2. 2X eyepiece 10x

    3. 1X microscope stand

    4. 1X objective 0.5x

    5. 1X objective lens 2x

    6. 1x144led light source

    7. 2X eye patch.

    8. 1X dust cover
