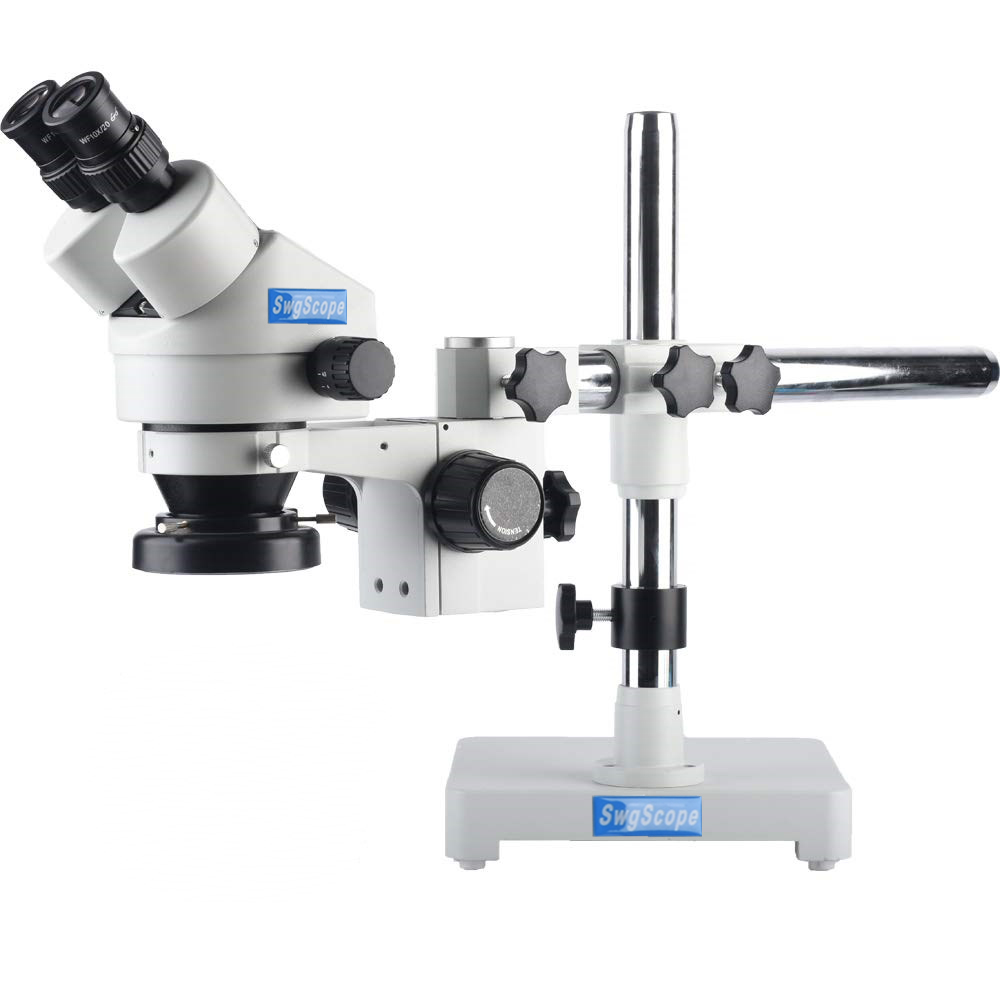

| Product model | SWG-L45-L1 |
| eyepiece | High eye point large field eyepiece wf10x / 20 |
| Objective lense | 0.7x-4.5x continuously adjustable |
| Nose | Binocular body tilt 45 degrees 360 degrees rotation |
| Pupil range | 52mm-75mm ± 5 visibility |
| Working distance | 100mm |
| Vertical height | 348mm |
| Base pillar | 230x230x40mm, column diameter 32mm, lens installation aperture 76mm |
| Horizontal movement | 235mm |
| Hair light source | LED (144 pieces) continuously adjustable |
| input voltage | 12V-0.5A |
| output power | 4.5W |
| Working distance | 40-160mm |
| Maximum illumination | 60000 Lux |
| Bulb brightness | MAX3500 MCD |
| Product model | SWG-L45-L1 |
| eyepiece | High eye point large field eyepiece wf10x / 20 |
| Objective lense | 0.7x-4.5x continuously adjustable |
| Nose | Binocular body tilt 45 degrees 360 degrees rotation |
| Pupil range | 52mm-75mm ± 5 visibility |
| Auxiliary objective | 0.5X/2X |
| Working distance | 100mm |
| Vertical height | 348mm |
| Base pillar | 230x230x40mm, column diameter 32mm, lens installation aperture 76mm |
| Horizontal movement | 235mm |
| Hair light source | LED (144 pieces) continuously adjustable |
| input voltage | 12V-0.5A |
| output power | 4.5W |
| Working distance | 40-160mm |
| Maximum illumination | 60000 Lux |
| Bulb brightness | MAX3500 MCD |
7x-45x packing list:
1. 1X host lens 0.7x-4.5x
2. 2X eyepiece 10x
3. 1X single arm L1 bracket
4. 1x144led light source
5. 2X eye patch.
6. 1X dust cover
3.5x-90x packing list:
1. 1X host lens 0.7x-4.5x
2. 2X eyepiece 10x
3. 1X single arm L1 bracket
4. 1X objective 0.5x
5. 1X objective lens 2x
6. 1x144led light source
7. 2X eye patch.
8. 1X dust cover
