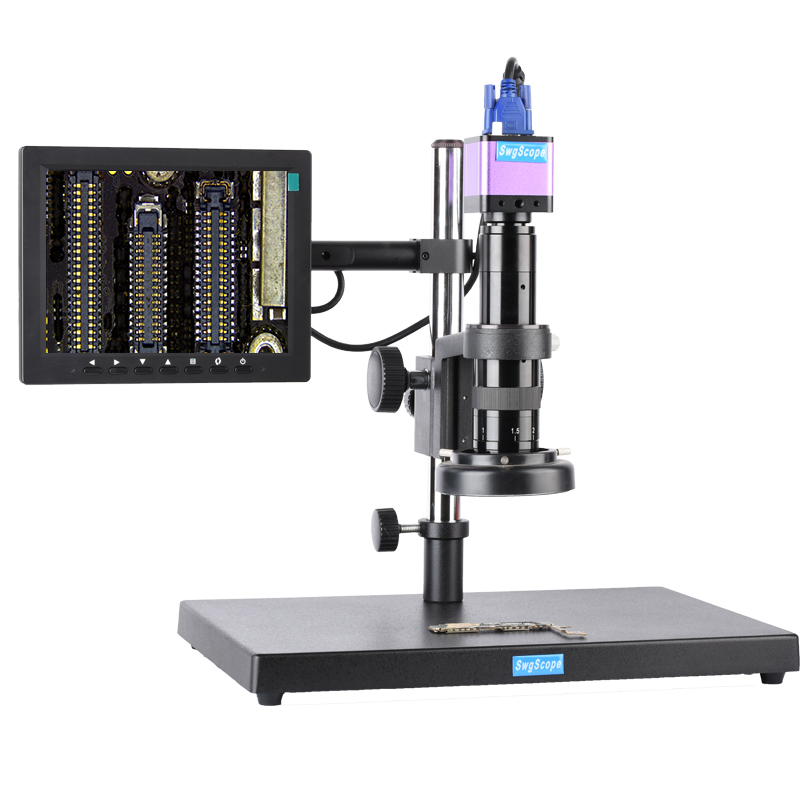

SWG-S100 electron microscope 12x-76x continuous zoom

Model: SWG-S100
Integrated HD 720P video output
Zoom in: 12x-76x
Resolution: 1280 * 1024
Display: 8 "
Light source: 144led continuous adjustable
Description Packing list
Product model SWG-S100
Zoom ratio Continuously adjustable 1:6.5
Comprehensive magnification 12X-76X
Working distance 90mm-110mm

Lifting range

275mm
focusing range 60mm
Lifting range 275mm
Base pillar Base 370x250x16mm, column height 310mm, diameter 25mm, lens aperture 50mm
pixel 1.3 megapixel
Resolving power 1280*1024
Frame number 60fps
Pixel size 3.75(H)μm * 3.75(V)μm
Optical size 1/3 inches
Appearance size 51mm * 51mm * 49mm
Video output VGA output
Cross line 8 crosshairs can be moved, and 6 colors (red, green, blue, white, gray, black) can be switched
function Hdr3 level wide dynamic adjustable, Se3 level edge enhancement. Enhance special image effect, one key white balance
Hair light source LED (144 pieces) continuously adjustable
input voltage 12V-0.5A
output power 4.5W
Working distance 40~ 160mm
Maximum illumination 60000 Lux
Bulb brightness MAX3500 MCD
Display 8 inches

1. 1x microscope host lens

2. 1x microscope bracket

3. 1x industrial camera

4. 1x 144led light source

5. 1x power adapter

6. 1x 8 "display

7. 1x display hanging rod
