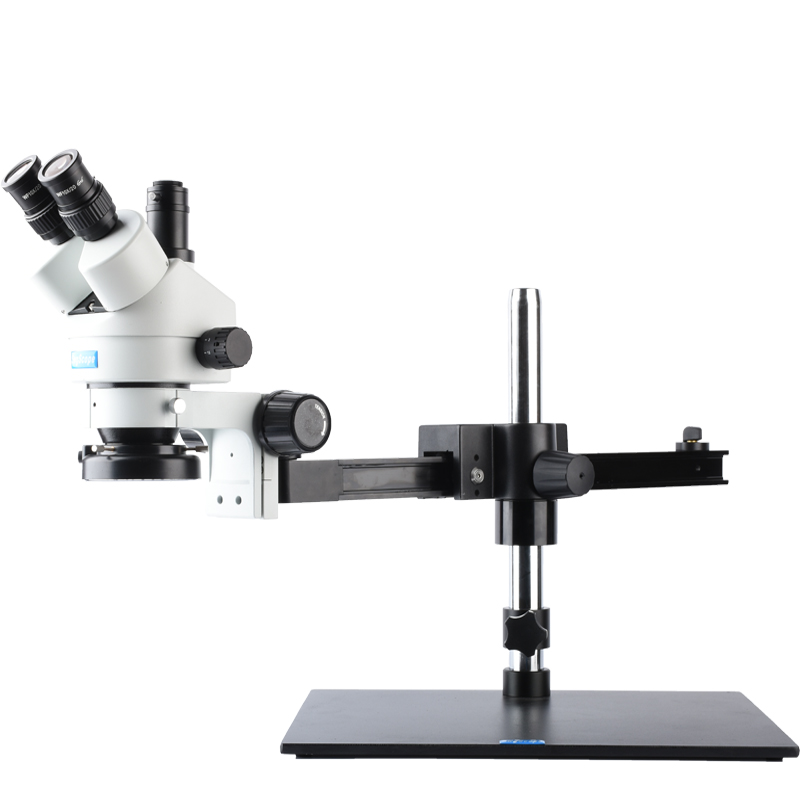

| Product model | SWG-S500-L4 |
| eyepiece | High eye point large field eyepiece wf10x / 20mm |
| Objective lense | 0.7x-4.5x continuously adjustable |
| CTV interface | 1X |
| Nose | Binocular tilt 45 degree 360 degree rotation |
| Auxiliary objective | 0.5X/2X |
| Pupil range | 52mm-75mm ± 5 visibility |
| Working distance | 100mm |
| Lifting range | 275mm |
| Base pillar | 300 * 400 * 10 mm; column diameter 32mm, lens aperture 76mm, vertical height 380mm |
| Horizontal movement | 320mm |
| Hair light source | LED (144 pieces) continuously adjustable |
| input voltage | 12V-0.5A |
| output power | 4.5W |
| Working distance | 40-160mm |
| Maximum illumination | 60000 Lux |
| Bulb brightness | MAX3500 MCD |
1. 1X mainframe three lens 0.7x-4.5x
2. 2X eyepiece 10x
3. 1X interface ctv1x
4. 1X cross arm L4 bracket
5. 1X objective 0.5x
6. 1X objective lens 2x
7. 1X 144led light source
8. 2X eye mask
9. 1X dust cover
