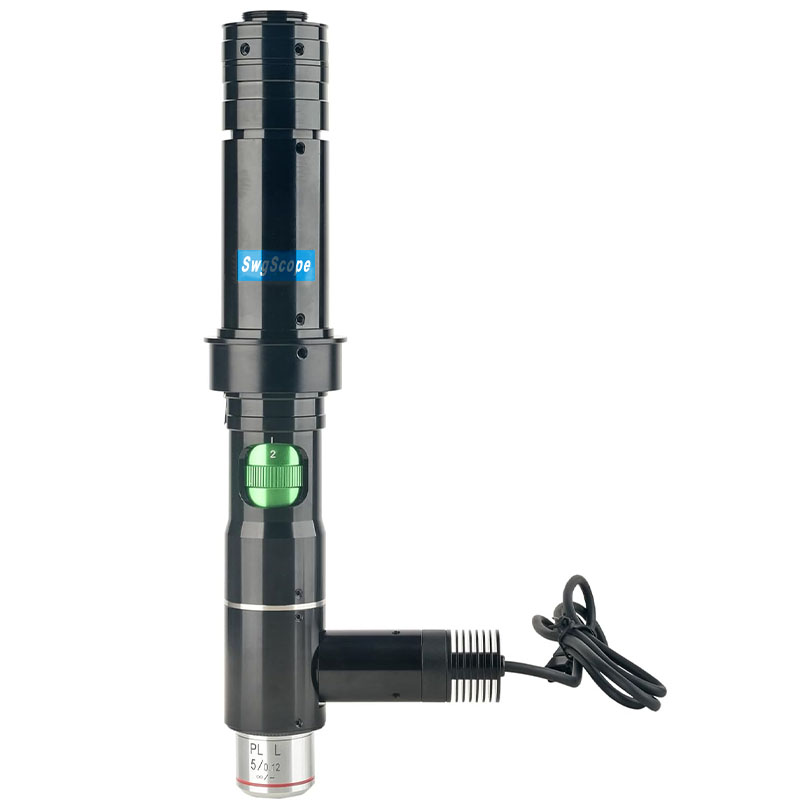

| Product model | SWG-T2000L |
| Optical amplification | 1.75X - 11.25X |
| Field of view | 0.71mm-4.57mm (refer to 1/2 chip industrial camera) |
| eyepiece | 1X |
| Objective lens | 0.7X-4.5X continuous magnification objective (with clip, locking magnification) |
| Auxiliary objective | Infinite flat field achromatic objective PL5X/0.12, working distance WD 26.1mm |
| Working distance | The 26.1 mm |
| Lens mounting dimension | 50mm |
| Lens interface | C-Mount |
| Resolution | 3.4 11.2 um |
| Depth of Field | 0.1 1.9 mm |
| NA | 0.03-0.1 |
| LED point light source | Coaxial LED point light source, input voltage: AC90V-240V, output voltage: DC3.3V 3W |
