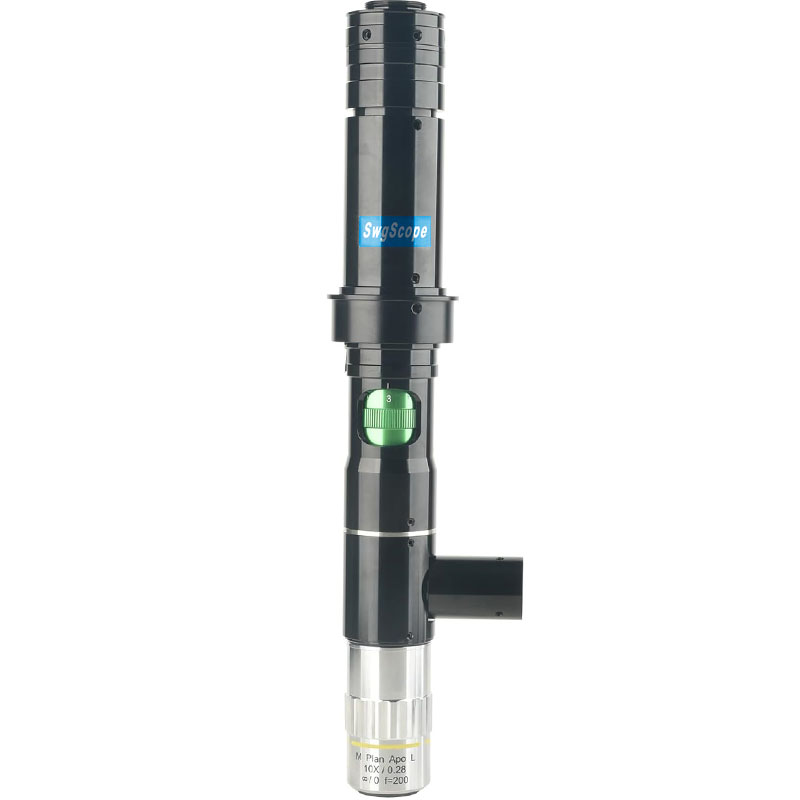

| Product model | SWG-T2010A |
| Optical amplification | 3.5 X - 22.5 X |
| Field of view | 0.35mm-2.28mm (refer to 1/2 chip industrial camera) |
| eyepiece | 1X |
| Objective lens | 0.7X-4.5X continuous magnification objective (with clip, locking magnification) |
| Lens interface | C-Mount |
| Lens mounting dimension | 50mm |
| Auxiliary objective | Infinite flat field apochromatic metallurgical objective APO L10X/0.28, working distance WD 33.4mm |
| Numerical aperture | The 0.28 mm |
| Working distance | The 33.4 mm |
| APO objective interface | M26X0. 705 |
| Focus Distance | 20mm |
| Resolution | 1.2 um |
| Depth of Field | 3.5 um |
| Object field of view | 2.5 mm |
| Image field of view | 25mm |
| LED point light source | Coaxial LED point light source, input voltage: AC90V-240V, output voltage: DC3.3V 3W |
