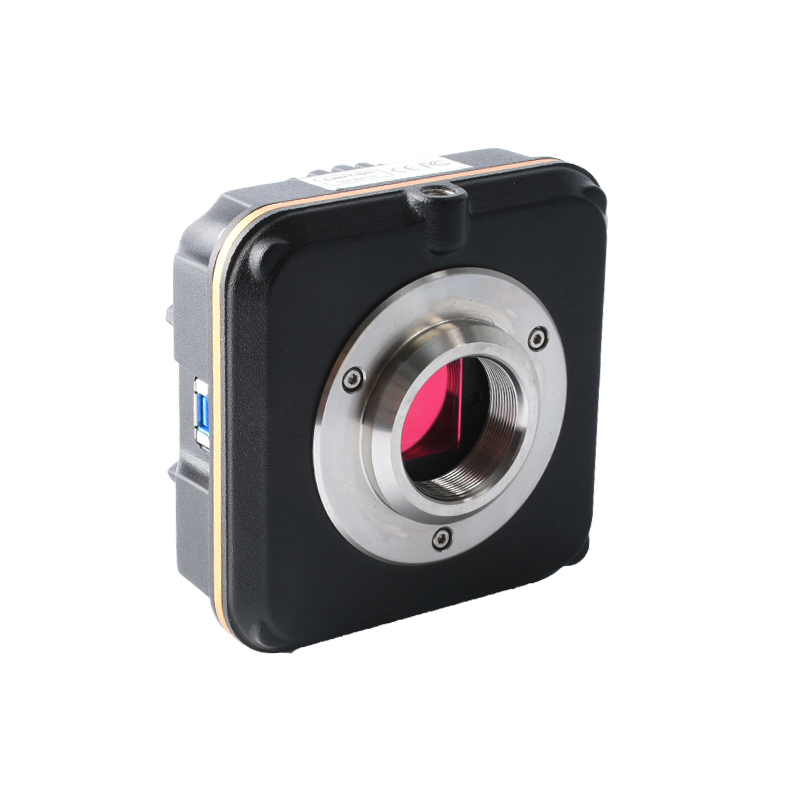

SWG-U1000 10MP USB3.0 HD industrial camera with measurement software

Model: SWG-U1000
Output: 3.0 USB
Pixel: HD 10MP
Resolution: 3584x2746
Provide splicing, EDF, video recording and measurement functions
Provide your computer screen with the same field of vision as the microscope eyepiece
Save still images in BMP, tiff, JPG, pict,
Description Packing list
The basic characteristics of U series cameras are as follows:
1: C interface CMOS camera with aptina CMOS sensor;
2: Resolution across 1.2m-14m, etc;
3: Large capacity memory chip is integrated on the board to ensure synchronous data transmission, high frame rate and stability;
4: Efficient heat dissipation structure to ensure low noise image;
5: USB3.0 interface ensures high transmission rate;
6: Ultra fine color engine ensures accurate color reproduction;
7: Provide advanced video and image processing application software with the camera;
8: Provide windows / Linux / OSX multi Platform SDK;
9: Support native C / C + +, C # / vb.net, DirectShow, Twain API;
Product model SWG-U1000
Sensor model
And dimensions
10M/MT9J003(C)
1/2.3“ (6.44x4.616)
Pixel (μ m) 1.67x1.67
G lightsensitivity
dynamic range
SN ratio
0.31v/lux-sec
65.2dB
34dB
FPS / resolution 7.2@3584x2746
24.5@1792x1372
Merge mode 1x1, 2x2, 4x4
ime of exposure 0.1ms-2000 ms

1. 1X USB10MP camera

2. 1X USB3.0 connector

3. 1X CD SOFTWARE CD

4. 1X scale
