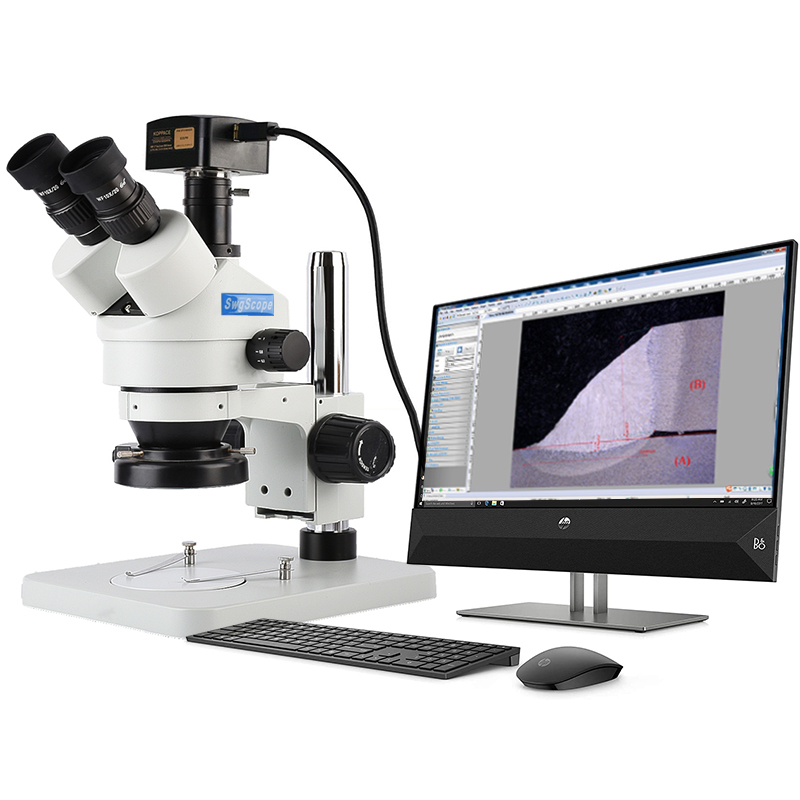

| Product model | SWG-U150X |
| eyepiece | High eye point large field eyepiece wf10x / 20 |
| Objective lense | 0.7x-4.5x continuously adjustable |
| CTV interface | 0.5X |
| Optical amplification | 7X-45X |
| Electronic amplification | 24X-153X |
| Zoom lens | Binocular tilt 45 degree 360 degree rotation |
| Pupillary range | 52mm-75mm ± 5 visibility |
| Working distance | 100-165mm |
| Lifting range | 275mm |
| Focusing stroke | 50mm |
| Base column | 200x255x22mm, column diameter 32mm |
| Lens aperture | Phi 76mm |
| Sensor model And dimensions |
5.1M/MT9P001(C) 1/2.5“(5.7x4.28) |
| Pixel (μ m) | 2.2x2.2 |
| G lightsensitivity dynamic range SN ratio |
0.53 V/lux-sec 66.5dB 40.5dB |
| FPS / resolution | 6.8@2592x1944 18@1280x960 55@640x480 |
| Merge mode | 1x1, 2x2, 4x4 |
| ime of exposure | 0.294ms-2000ms |
| Measurement function | Between two points, point to line, three point circle, center distance, concentric circle, point to circle, line to circle, parallel line, rectangle, angle, radian, polygon |
| working temperature | -10-70 degrees |
| Power Supply | DC-12V/1A |
| Hair light source | LED (144 pieces) continuously adjustable |
| input voltage | 12V-0.5A |
| output power | 4.5W |
| Working distance | 40~ 160mm |
| Maximum illumination | 60000 Lux |
| Bulb brightness | MAX3500 MCD |
1. 1X Microscope host lens
2. 1X microscope stand
3. 1X usb5 million HD measurement camera
4. 1X 144led light source
5. 1X USB cable
6. 1x CD
