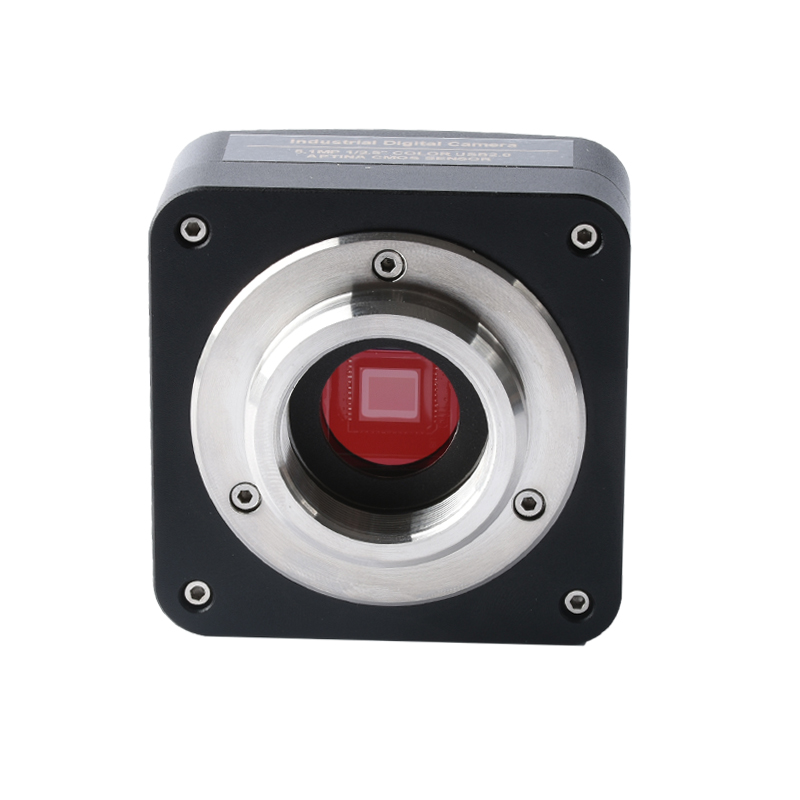

| The basic features of U series cameras are as follows: 1: C interface CMOS camera with aptina CMOS sensor; 2: Resolution across 1.2m-14m, etc; 3: A large capacity memory chip is integrated on the board to ensure synchronous data transmission, high frame rate and stability; 4: Efficient heat dissipation structure to ensure low noise image; 5: USB2.0 interface ensures high transmission rate; 6: Ultra finetm color engine ensures accurate color reproduction; 7: Provide advanced video and image processing application software with the camera; 8: Provide windows / Linux / OSX multi Platform SDK; 9: Support native C / C + +, C #/ vb.net, DirectShow, Twain API |
|
| Product model | SWG-U500 |
| Sensor model And dimensions |
5.1M/MT9P001(C) 1/2.5“(5.7x4.28) |
| Pixel (μ m) | 2.2x2.2 |
| G lightsensitivity dynamic range SN ratio |
0.53 V/lux-sec 66.5dB 40.5dB |
| FPS / resolution | 6.8@2592x1944 18@1280x960 55@640x480 |
| Merge mode | 1x1, 2x2, 4x4 |
| ime of exposure | 0.294ms-2000ms |
1. 1X USB5.0MP camera
2. 1X USB2.0 connector
3. 1X CD SOFTWARE CD
4. 1X scale
