| Product specification | SWG-VS2400 |
| Zoom ratio | Continuously adjustable 1:7.2 |
| Zoom rate | 20X-150X |
| Working distance | 90-110mm |
| Guide stroke | 60mm |
| Column | 326m |
| Field of view | 3.5mm-25mm |
| Base pillar | 380 × 250 |
| pixel | 2 megapixel |
| Resolving power | 1920 * 1080 |
| Frame number | 60fps |
| Pixel size | 2.75 (H)μm * 2.75(V)μm |
| Optical size | 1/2 inches |
| output | HDMI |
| Cross line | Crosshairs movable, color switching |
| function | Support marking line adjustment, photo storage, picture flipping, picture playback, picture comparison; HDR wide dynamic adjustable; se edge enhancement, one button white balance; |
| Hair light source | LED (144 pieces) continuously adjustable |
| input voltage | 12V-0.5A |
| output power | 4.5W |
| Working distance | 40-160mm |
| Maximum illumination | 60000 Lux |
| Bulb brightness | MAX3500 MCD |
| Display | 21.5 inches |

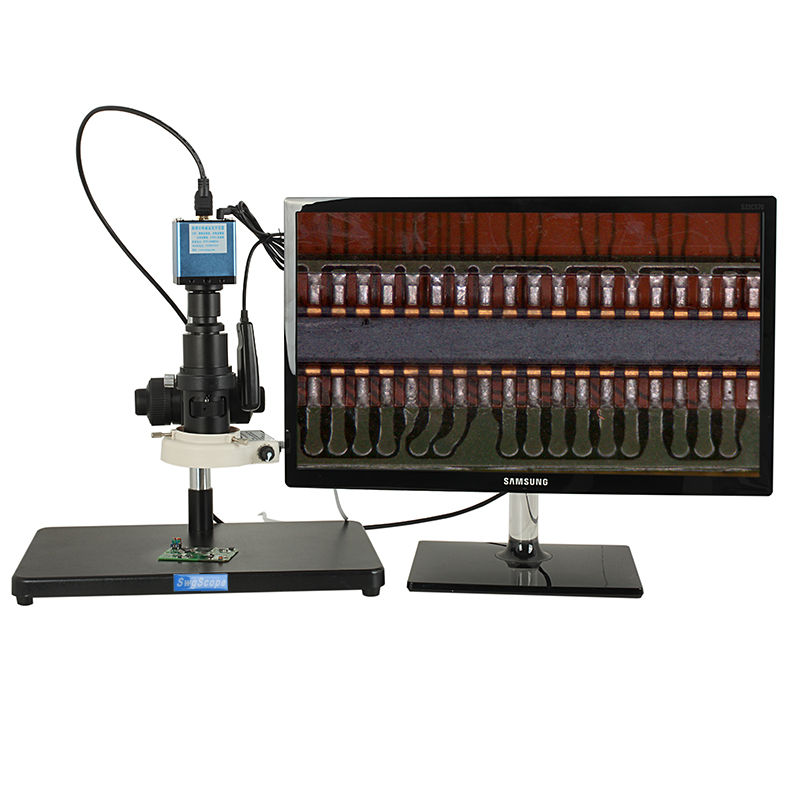

1. 1x microscope host lens
2. 1x microscope bracket
3. 1x HD storage camera
4. 1x 21.5 inch display
5. 1x 144led light source
6. 1x power adapter
7. 1x HDMI cable
