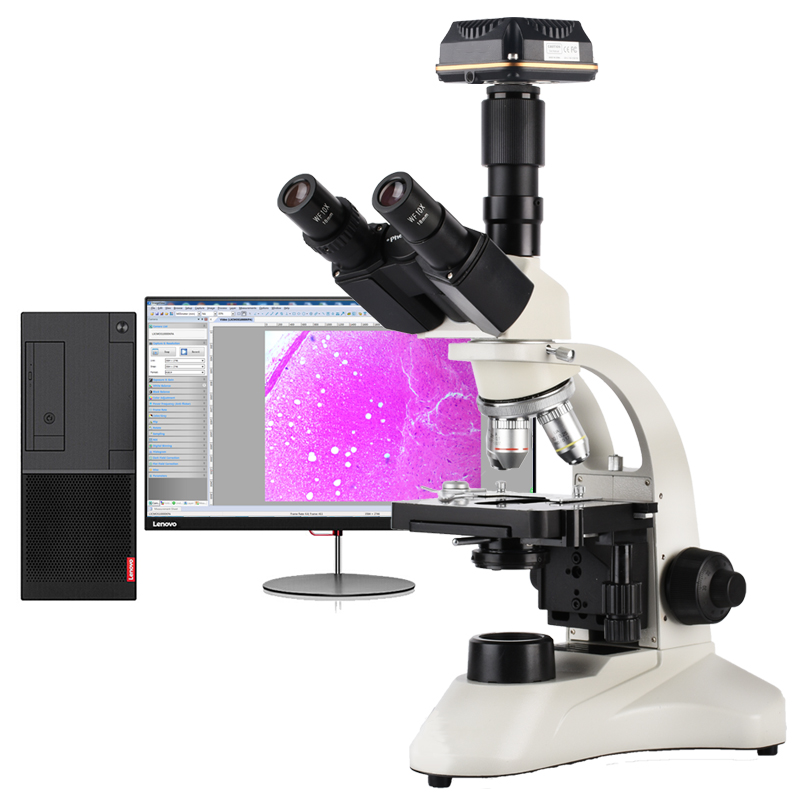

SWG-W2400 10 megapixel three eye electron microscope 40-1600X

Model: SWG-W2400
Resolution: 3584x2746 10 million pixels
Optical amplification: 40x-1600x
Eyepiece: wide angle wf10x / 18mm, wide angle wf16x / 11mm
Objective: 195 achromatic objective 4x, 10x, 40x (S), 100x (O, S)
Description Packing list
Specifications SWG-W2400
Optical enlargement 40X-1600X
Observation tube Hinge Trinocular,30 degrees inclined,360 degrees  rotate
Eyepiece Wide-angle eyepiece WF10X/18mm,Wide-angle eyepiece WF16X/11mm
Objective lens 195 achromatic lens 4X,10X,40X(spring),100X(The oil mirror)
Converter Four holes conversion

Loading stage

Double mechanical mobile platform,size 125×115mm,Moving range 70×30mm
Focusing mechanism Coarse micro coaxial, coarse 20 mm,fine-tuning of 0.002 mm
condenser Abbe concentrator,N.A.=1.25,with variable aperture
Light source LED cold light source,high brightness,adjustable brightness
Power External regulated power adapter,DC5V/2A
packaging Bubble + carton
Sensor 10M/MT9J003  CMOS color
Sensor Size 1/2.3“ (5.98x4.58)
Resolution 3584x2746  10 million pixels
Pixel Size 1.67μmx1.67μm
Frame Rate 7.2@3584x2746                24.5@1792x1372
Exposure 0.1ms~2000ms
White balance ROI White Balance/ Manual Temp-Tint Adjustment
Capture/Control API Native C/C++, C#,Directshow,Twain,Labview
Recording mode Image and video
Cooling System Natural
Operating Temperature -10°C~50°C
Storage Temperature -20°C~60°C
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
1、2X wide-angle eyepiece WF10X/16
2、2X wide-angle eyepiece WF16X
3、1X objective lens 4X
4、1X objective lens 10X
5、1X objective 40X
6、X objective lens 100X
7、1X microscope body
8、1X power adapter
9、1X 10 million industrial camera
10、1X USB3.0 data cable
11、1X drive CD
