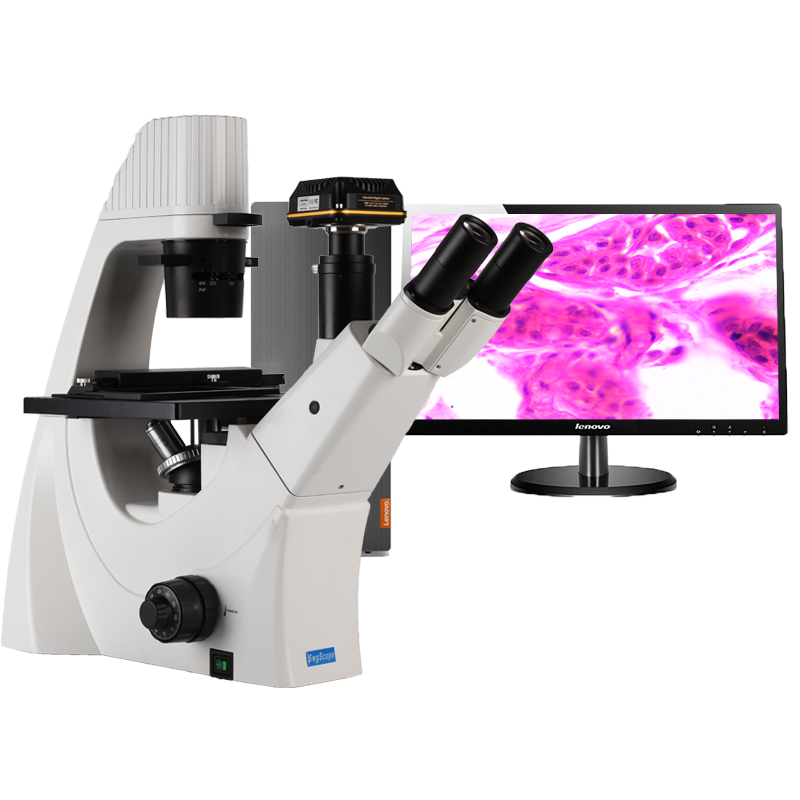

| SWG-XD300 inverted microscope is a kind of inverted biomicroscope, which adopts excellent infinite optical system and can provide excellent optical performance. Streamlined design concept, compact and stable high rigid body, fully embodies the anti vibration requirements of micromanipulation. Ultra long working distance concentrating system can observe the culture cells of high culture dishes or cylindrical flasks without contamination, and the lighting system fully considers Heat dissipation and safety, ergonomic design concept, make the operation more convenient, comfortable and safe, more spacious. The phase contrast device can be attached to the optical path to achieve phase contrast microscopic observation. This instrument can carry out microscopic observation on cell tissue, transparent liquid tissue, and dynamic microscopic observation on culture tissue in the dish, which can be applied to scientific research institutes, colleges and universities, medical and health care, inspection and quarantine Inspection and quarantine, agriculture, animal husbandry, dairy and other departments. | |
| Product model | SWG-XD300 |
| Magnification | 100X-400X |
| Eye glasses | Wide field of view eyepiece WF10x; field of view: Ф 22mm Eyepiece interface: Ф 30mm; focusing distance: 10 mm |
| Centering telescope | |
| Eyepiece tube | 45 ° tilt, binocular pupil distance adjustment range: 48-75mm, eye point height is 400mm from the table top |
| Open field objective | 10x / 0.25; working distance: 4.27mm; thickness of cover glass: 1.2mm |
| 20x / 0.4; working distance: 8mm, cover glass thickness: 1.2mm | |
| 40x / 3.5; working distance: 3.5mm; thickness of cover glass: 1.2mm | |
| Phase contrast objective | 10x / 0.25; working distance: 4.27mm; thickness of cover glass: 1.2mm Standard php2 |
| Converter | Four hole converter |
| focusing system | Coarsely fretting coaxial, fretting grid value: 2 μ, coarsely adjustable, with locking and limiting device, effective focusing stroke 11mm |
| Condenser lens | Long working distance condenser, working distance 70mm, with inserted plate phase contrast device |
| Loading stage Culture plate |
Movement range (transverse x longitudinal): 112mmx79mm, removable ruler |
| 86mm (W) x129.5mm (L), suitable for round culture dish Ф 87.5mm | |
| 34mm (W) x77.5mm (L), suitable for round culture dish Ф 68.5mm | |
| 57mm (W) x82mm (L) | |
| Phase contrast system | Phase contrast, pull plate phase contrast condenser, adjustable center of phase contrast ring |
| Lighting | 9W led, brightness adjustable |
| Color filter | Frosted glass, blue filter |
| Tuning tool |
Hexagon socket (M4, M5) |
| Advanced software for windows: -Provide splicing, EDF, video recording and measurement functions -Measure length, angle, radian, area, etc. -Provide your computer screen with the same field of vision as the microscope eyepiece -Save still images in BMP, tiff, JPG, pict, PTL or other formats -Edit and process microscope images in a Photoshop like way -Real time video and still image capture can be set at different resolutions at the same time More functions: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, direction; change resolution, histogram, graining, diffusion; transform image through edge detection, digital image deformation; measure single, parallel or vertical lines and rectangular, elliptical and irregular areas; use customizable text with different sizes and colors; add notes Interpretation, measurement, text, arrow, label, etc.; measure micrometer, millimeter, centimeter, inch, foot, etc. with required tolerance under any magnification. |
|
1. 2x wide-angle eyepiece WF10x
2. 1x phase contrast objective 10x
3. 1x objective lens 10x
4. 1x objective lens 20x
5. 1x objective lens 40x
6. 1x microscope bracket
7. 1x power adapter
8. 1x 10 million industrial camera
9. 1x USB 3.0 data line
10. 1x drive disc
