Model |

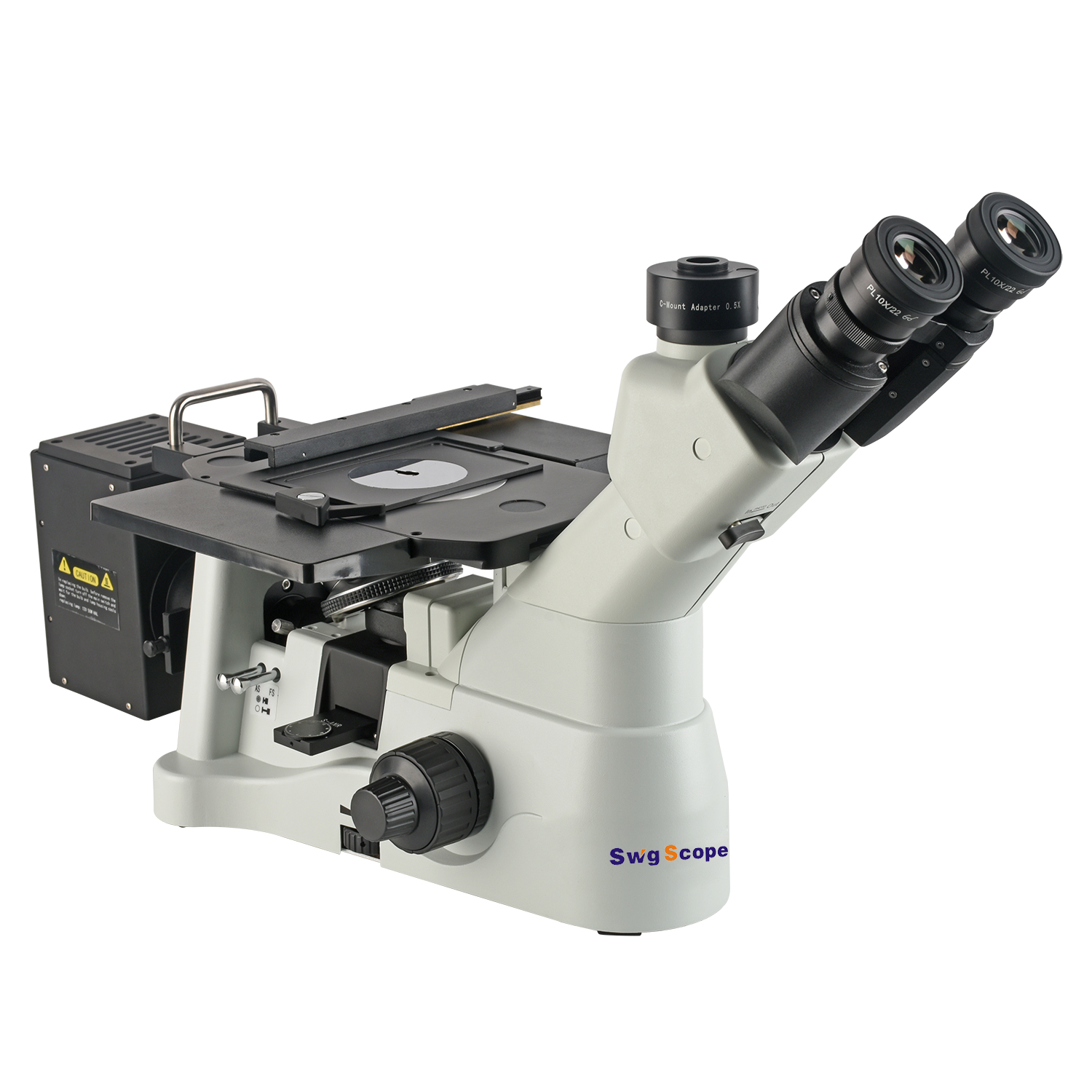

SWG-XD30M |
Magnification |
50X、100X、200X、500X |
Optical system |
Infinity Chromatic Aberration Correction Optical System |
Eyepiece |
High Eye Point large Field of View Flat Field Eyepiece PL10X22mm |
Objective Lens |
Flat Field Infinity Long Working Distance Achromatic Metallographic Objective
|
Observation Tube |
45° Tilt,Hinged Trinocular Viewing Tube,Pupillary Distance Adjustment Range 50-75mm |
Converter |
Five Hole Converter |
Focusing System |
Low Hand Coarse Micro Coaxial Focusing Mechanism,Coarse Adjustment Stroke 38mm,Fine Adjustment Accuracy 0.002mm |
Operating Platform |
Mechanical Mobile Platform, metal loading platform (center hole diameter 12mm) Platform Area 160mmX250mm,Movement Range:120X78mm |
Lighting System |
Reflective Kola Illuminator,12V50W Halogen lamp Center Adjustable,Wide Voltage 100V-240V Self-Adaptive,Brightness Continuously Adjustable |
Polarizing Device |
Polarizer Insert Plate,360°Rotating Analyzer Insert Plate |
Trinocular Interface |
0.5X C-mount Interface,Adjustable Focus |
Color Filter |
Yellow,Green,Blue,Neutral Filter |
| Packing List | 1、Eyepiece PL10X/22 One Pair 2、Objective Lens 5X *1 3、Objective Lens 10X *1 4、Objective Lens 20X *1 5、Objective Lens 50X *1 6、Trinocular Body *1 7、0.5X Interface *1 8、Yellow/Green/Neutral Color Filter *1 9、Blue Color Filter *1 10、Analyzer *1 11、Polarizer *1 12、Frosted glass Plug Board *1 13、Power Cord *1 14、Dust Cover *1 |
